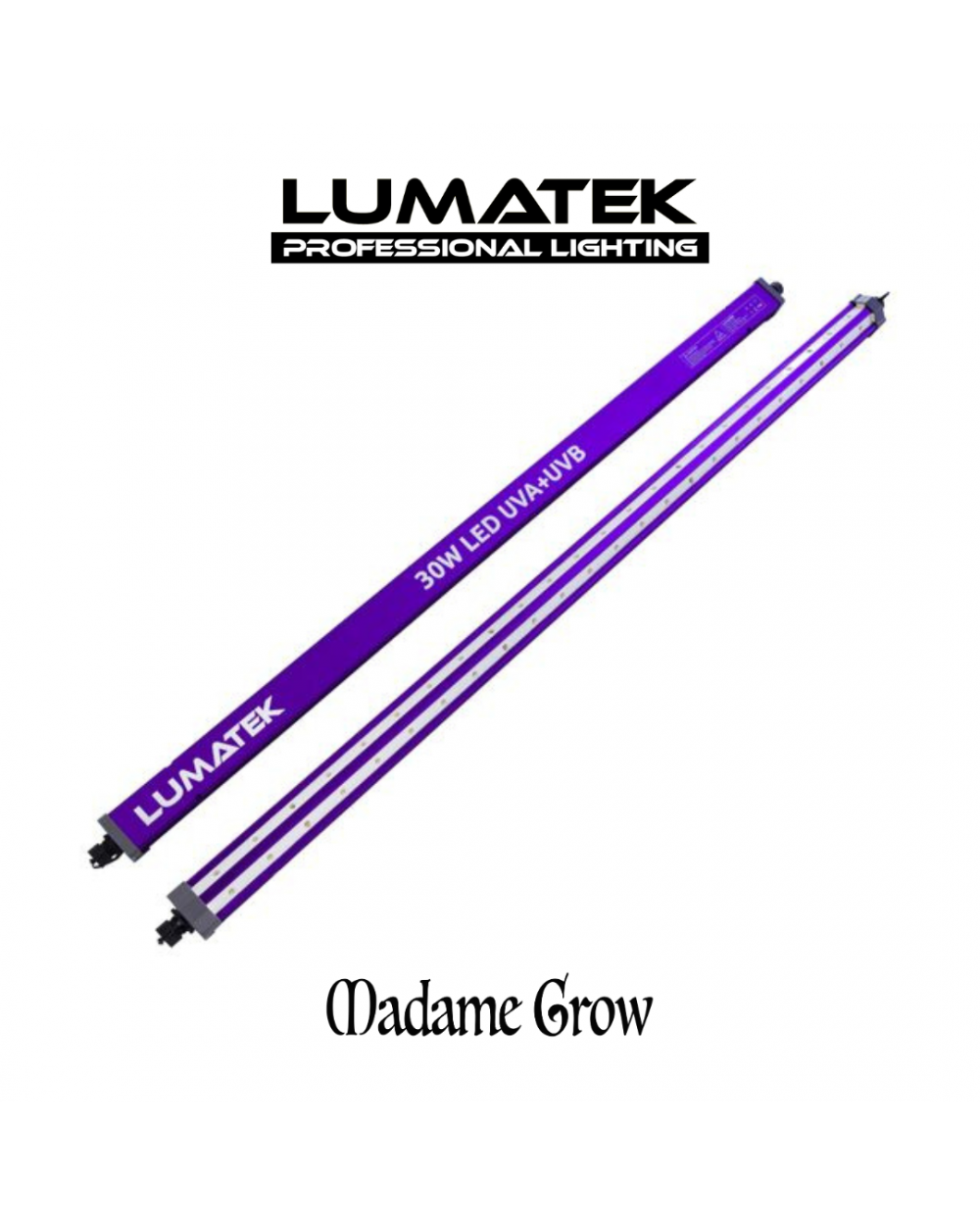

UV Supplemental LED Bar 30W - Lumatek

The 30W Lumatek UV Supplemental LED Bar is the ideal choice for growers looking to maximize the quality of their harvest. This accessory is specifically designed to add ultraviolet (UV) light spectrum to your crops during the flowering stage, enhancing the quality of the buds and increasing the concentration of essential compounds. The inclusion of UV-B and UV-A radiation promotes greater resin production, improving the aroma, taste, and potency of your crops.

This accessory is compatible with the Lumatek Zeus LED luminaires and is optimized to connect multiple units in a chain to cover larger areas. Additionally, its compact and cable-free design makes installation easy in grow spaces, offering flexibility to suit your needs. Thanks to its UV-B and UV-A emission capabilities, the Lumatek LED Bar serves as an essential tool for growers seeking a premium harvest.

Using this light bar can increase the amount of the main substance to be extracted by up to 30%, while controlling mold formation, reducing the need for chemical treatments. Furthermore, its UV-B radiation properties help enhance the plants' natural defense, ensuring healthier crops.

With the 30W Lumatek UV Supplemental LED Bar, your crop will benefit from advanced, precise technology designed to deliver the best results in terms of performance and quality.

TECHNICAL SPECIFICATIONS:

➣ Product Code: lumled013

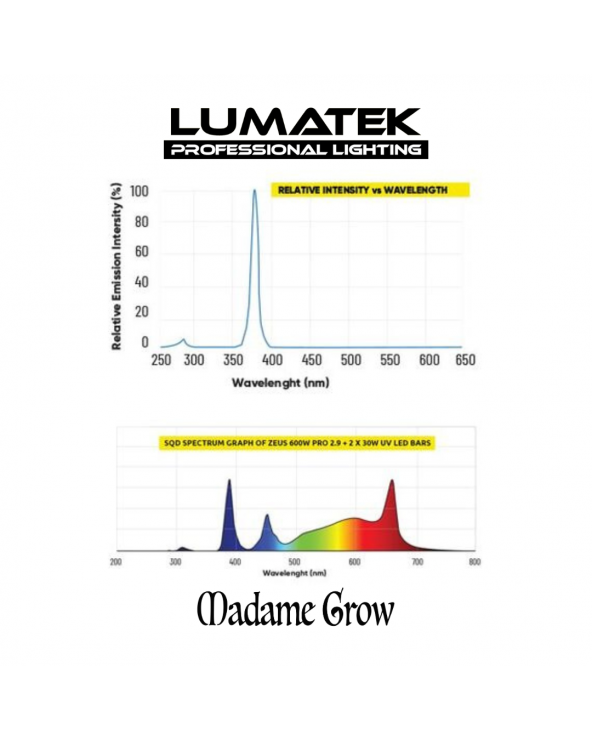

➣ UV-B (280-315 nm): 100 mW
➣ UV-A (315-400 nm): 1200 mW
➣ Input Voltage: 20-240 V AC, 50-60 Hz
➣ Driver: 30 W, 220-240 V AC, integrated
➣ Input Power: 30W (±5%)
➣ Footprint: 1.2 x 0.6 m
➣ Application: Multi-layer, Room, Tent
➣ Waterproof and Dustproof: IP65
➣ Lifetime: L90 > 8500 hours
➣ Light Distribution: 140°
➣ Light Source: Domestic UV-B and UV-A Diodes

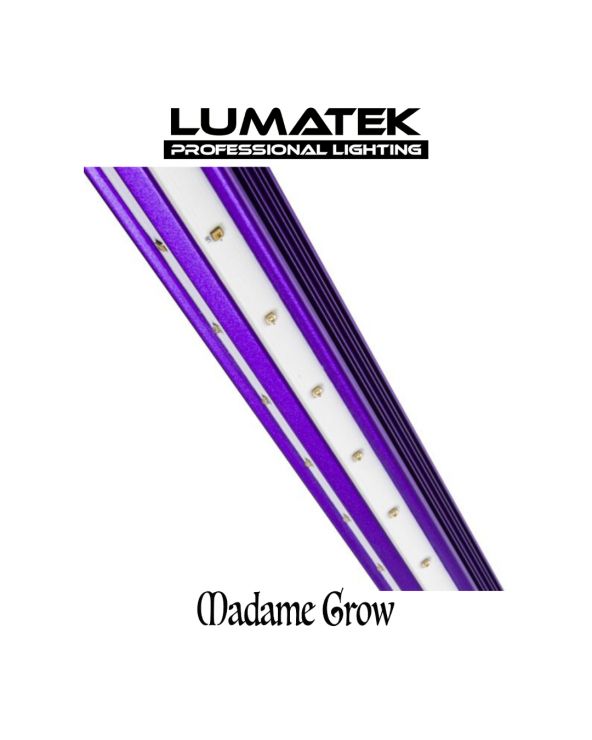

➣ Total Diodes: 8 UV-B, 40 UV-A
➣ Dimmable: No
➣ External Control: No
➣ Daisy Chain Capacity: Yes
➣ Weight: 1.2 kg
➣ Dimensions: 1000 x 48 x 42 mm
➣ Thermal Management: Passive
➣ Power Factor: > 0.98
➣ Max Ambient Temperature: 0 °C
➣ BTU: 102 BTU/h
➣ 1 Year Warranty
➣ Certifications: CE

INCLUDED ITEMS
1 x 30W UV Supplemental LED Light Bar

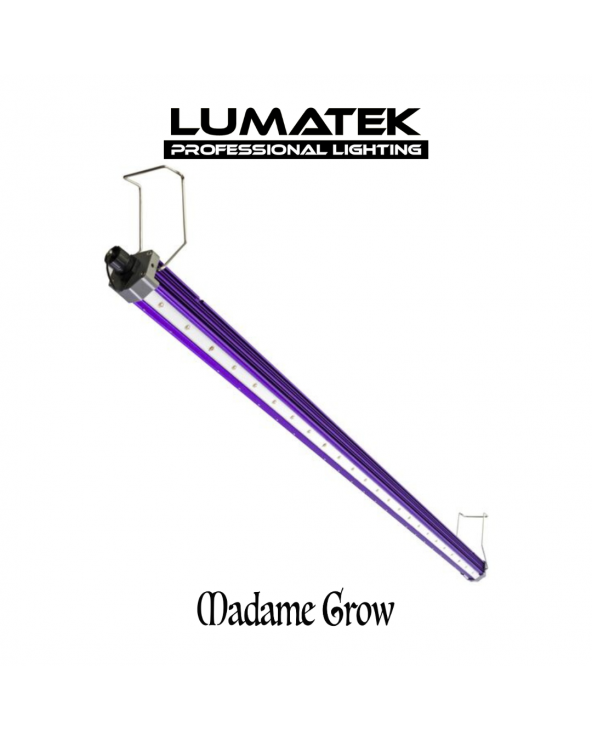

2 x Stainless Steel Hooks

ITEMS SOLD SEPARATELY
Power Cable (ILED.033-01 Lumatek UV LED Cable)

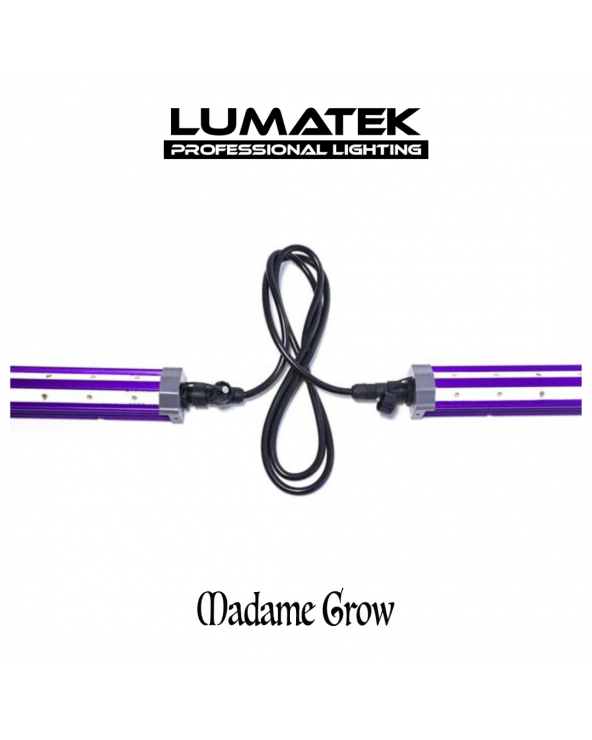

Daisy Chain Cable with UV Bar (ILED.033-02 Lumatek UV LED Daisy Chain Cable)

Recommended Coverage

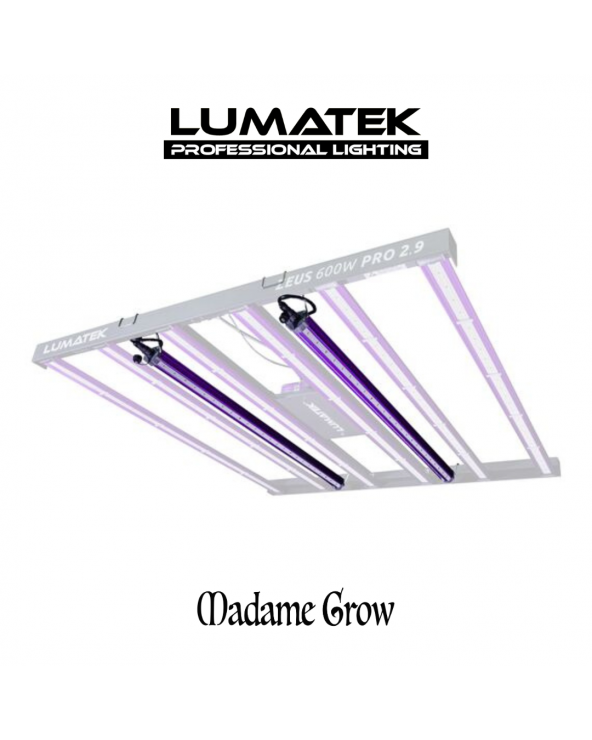

The 30W Lumatek UV Supplemental LED Bar is designed to fit directly into Lumatek Zeus luminaires. To ensure optimal light distribution over the canopy, we recommend:
Integrating a minimum of 2 units of 30W UV Supplemental LED Bars with:

- ZEUS 465W 2.6 | Footprint of 1.2 x 1.2 m

- ZEUS 600W 2.6 | Footprint of 1.4 x 1.4 m

- ZEUS 465W PRO 2.9 | Footprint of 1.2 x 1.2 m

- ZEUS 600W PRO 2.9 | Footprint of 1.4 x 1.4 m

- ZEUS 1000W Xtreme CO2 | Area of 1.5 x 1.5 m with CO2 supplement

Integrating a minimum of 3 units of 30W UV Supplemental LED Bars with:

- ZEUS 1000W PRO | Footprint of 1.5 x 2.0 m
