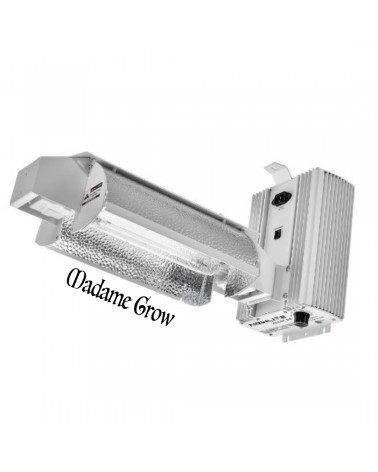

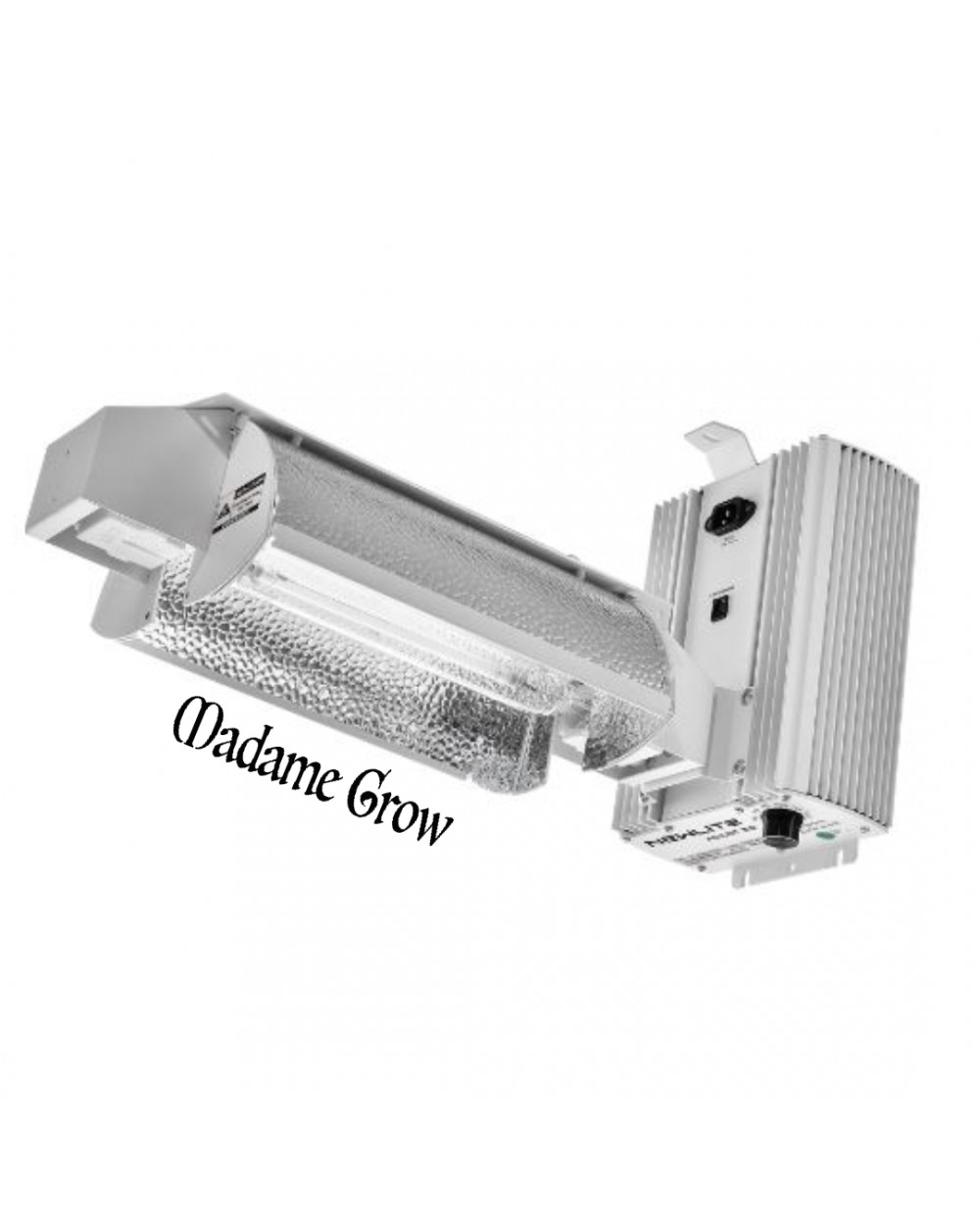

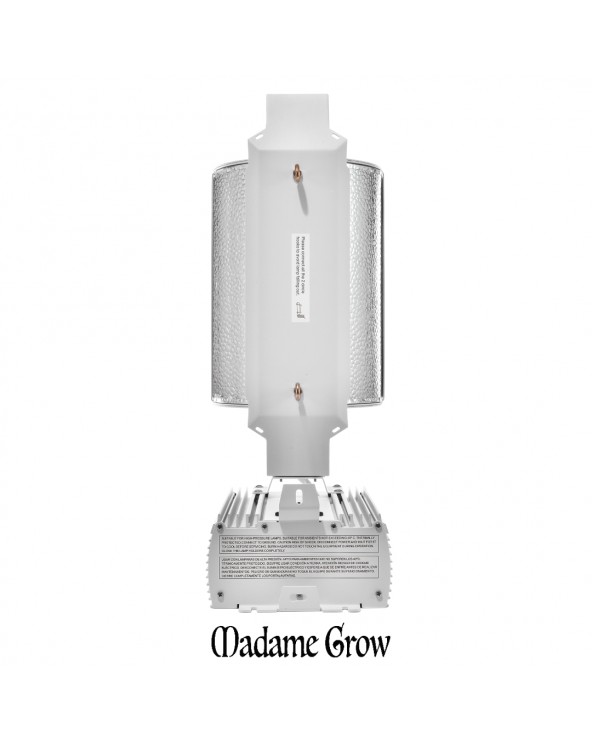

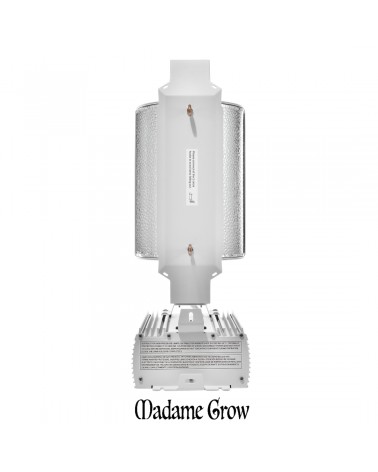

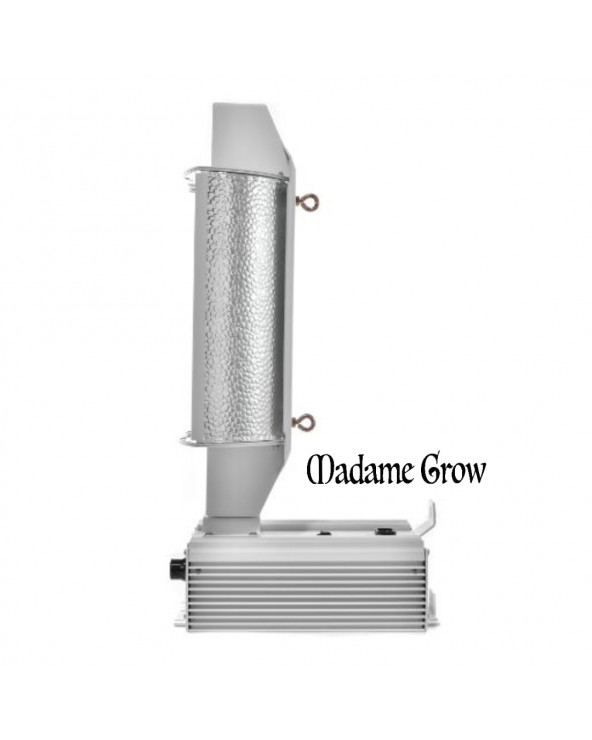

HPS NewLite Adjust 3.0 1000W DE Luminaire with EXT (without lamp)

The HPS NewLite Adjust 3.0 1000W DE Luminaire with EXT is an advanced tool designed to maximize the performance of technical crops, grow rooms, and professional greenhouses. Compatible with double-ended high-pressure sodium lamps, this luminaire offers superior efficiency and precise control.

Key Features

• Adjustable Reflector: The Silver 9 aluminum reflector manufactured by Alanod is adjustable in three positions, providing excellent 95% light reflection.
• External Control: With an EXT connector for integration with external controllers (sold separately), it allows precise regulation of lamp ignition and intensity.
• Advanced Technology: Equipped with a microprocessor, the ballast incorporates soft start (SST) and soft dimming (SDT) technologies, prolonging lamp life and stabilizing output power.
• Power Regulation: Offers adjustable power options between 600W, 660W, 1000W, and Super Lumen, adapting to different growing needs.

Technical Specifications

• Maximum Power: 1150W (approximately 115% of the nominal power).
• Voltage Range: 240V (+/- 10%): 216-264V.
• Operating Temperature: -20ºC to 40ºC.
• Maximum Humidity: 95%.
• Package Dimensions: 58 x 34 x 27 cm, weight 7.8 kg.
• Lamp Dimensions: 560 mm x 206 mm x 294 mm, weight 4.6 kg.
• Built-in Protections: Protection against short circuits, overloads, and ignition failures.
• Connectivity: RJ11 wiring included.

Benefits

• Stability and Efficiency: Soft start technology reduces ballast damage and prolongs lamp life, ensuring stable performance even in voltage fluctuations.
• Versatility: Ideal for all types of crops, it allows concentrating light in high installations or covering a larger area by adjusting the reflector.
• Safety: Includes multiple voltage protections and a centralized management system to control several luminaires from a single point.

Usage and Maintenance

• Simple Installation: Insert the ends of the lamp into the VS socket, ensuring a secure fit.
• Maintenance: Before use, remove the protective plastic film from the reflector and ensure fingerprints and oils are removed from the lamp's quartz sleeve.

Warnings

• Overvoltage, power outages, and overload can affect performance or damage the lamp.
• The working voltage should not be less than 200V, and the ambient temperature should be below 40ºC.
• In case of unexpected shutdown, disconnect the power supply and check the wiring before restarting.

Optimize your grow with the HPS NewLite Adjust 3.0 1000W DE Luminaire, a professional solution that combines efficiency, control, and durability to maximize your results.
